GYSMATIC 5-13 G Air-Fed Helmet True Colour XXL

GYSMATIC 5-13 G Air-Fed Helmet True Colour XXL

by GYS
Sold out
from
£379.20
from £379.20
£379.20
SKU GYS028852

FREE standard delivery on UK Mainland orders over £75 for stock items.

Non stock items including equipment and special orders, buyer will be contacted with a delivery schedule.

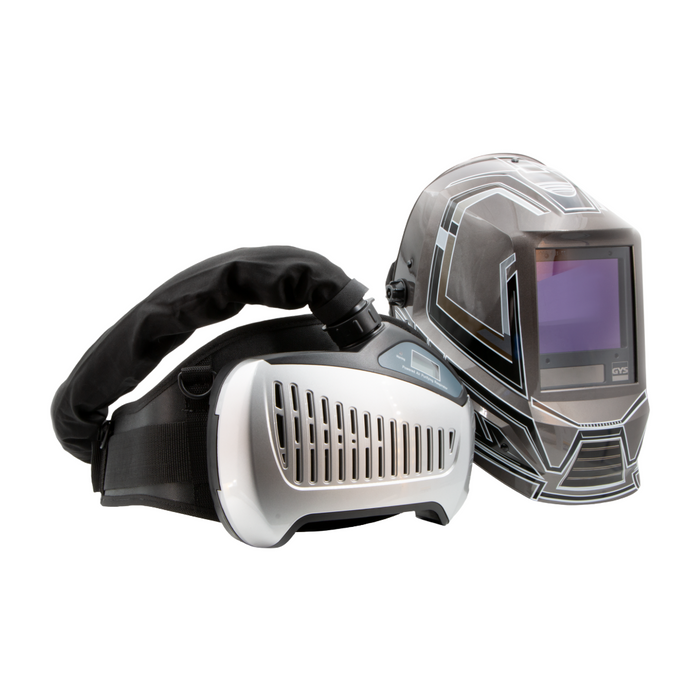

THe GYSMATIC 5/13 AIR XXL is an air-fed welding helmet. 2-in-1, it protects the user's eyes from infrared/ultraviolet and the user's respiratory system during welding operations.

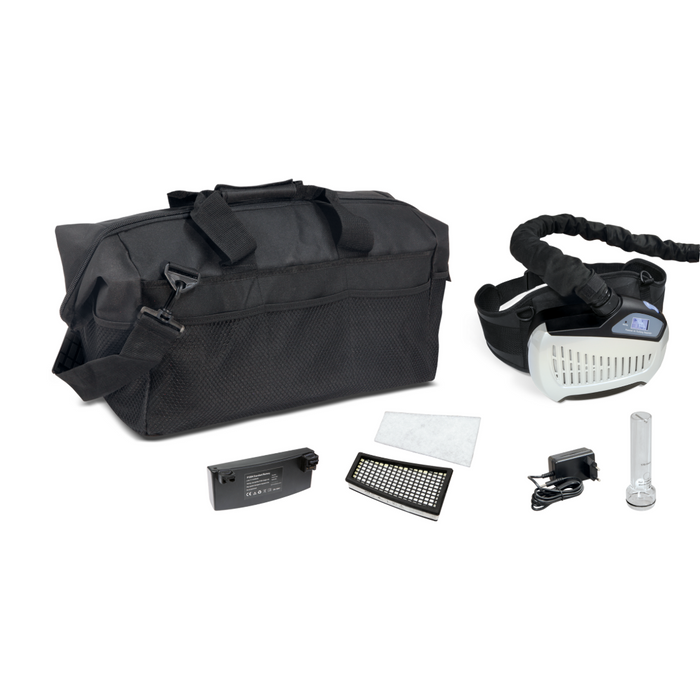

Supplied with: GYSMATIC 5/13 XXl + welding hood; the respiratory protection system (motor + filter + waist belt); lithium-ion battery + charger; shoulder harness / air flowmeter / carrying bag.

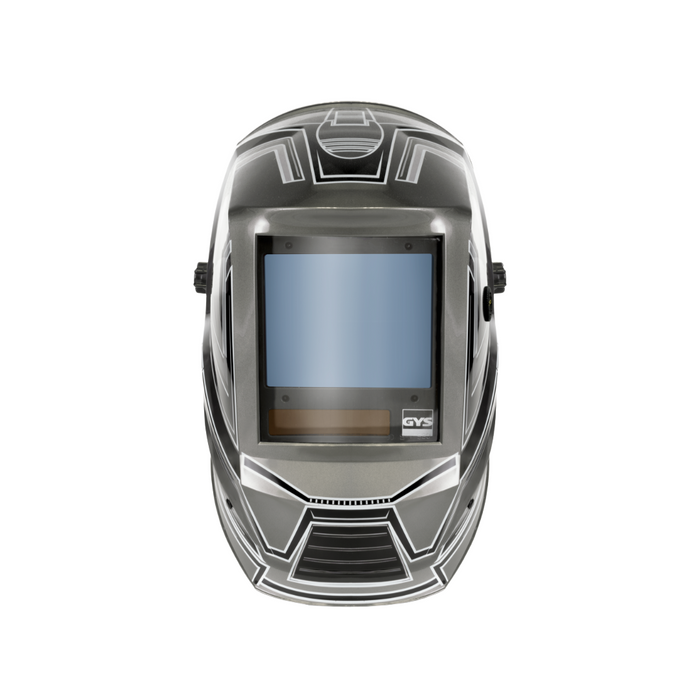

WELDING HELMET

  • Optimal visibility: XXL screen (100 x 83mm).
  • Touch sensitive button (sensitivity / delay / shade / saved settings).
  • Can save up to 3 settings.
  • 4 sensors for improved performance.
  • TIG welding > 2 A.
  • 7 different shades (5 to 13) for all welding and cutting operations.
  • TRUE COLOR technology.

Technical Specifications – Helmet

  • Classification: 1/1/1/1
  • Clear shade: 4
  • Dark shade: 5 - 13
  • Time back to clear state: adjustable
  • Field of vision: 100 x 83mm
  • Power supply: solar + battery (CR2450)
  • Weight: 836g
  • Settings: sensitivity, delay, shade, grinding, settings
  • Light sensor: 4
  • Applications: MMA 5→400 / TIG 2→300 / MIG-MAG 5→400
  • Standards: CE / EN 166 / EN 175 / EN 379 / EN 12941

RESPIRATORY PROTECTION

Suited for difficult working conditions, with concentrated fumes and gas emissions:

  • Filter class: TH P R SL.
  • Digital display for battery life and filter saturation state.
  • 3 air flow modes: 170 l/min, 200 l/min and 230 l/min.
  • The motor / filter pack is attached to a waist belt.
  • Alarm (obstructed filter / low battery).
  • Up to 8h battery life (lithium battery), perfectly suited for extended welding sessions.
  • Compact and sturdy, fitted with a spark arrestor.
  • Large carrying bag for the helmet and its respiratory unit.

Technical Specifications – Respiratory Protection

  • Air flow: 170 l/min level 1, 200 l/min level 2, 230l/min level 3
  • Battery life*: >8h on level 1, >6h on level 2, >4h on level 3
  • Airtight: 98%
  • Filter effectiveness: 99.996% to 0.3µm
  • Noise: 73 dB max.
  • Charge time: 3 - 4 h
  • Battery type: Li-ion
  • Waist belt size: 900mm - 1300mm
  • Weight: 1.7kg
  • Standard: EN 12941

*Battery life depends on the selected mode and filter cleanliness.
